Tripod Anchor Point

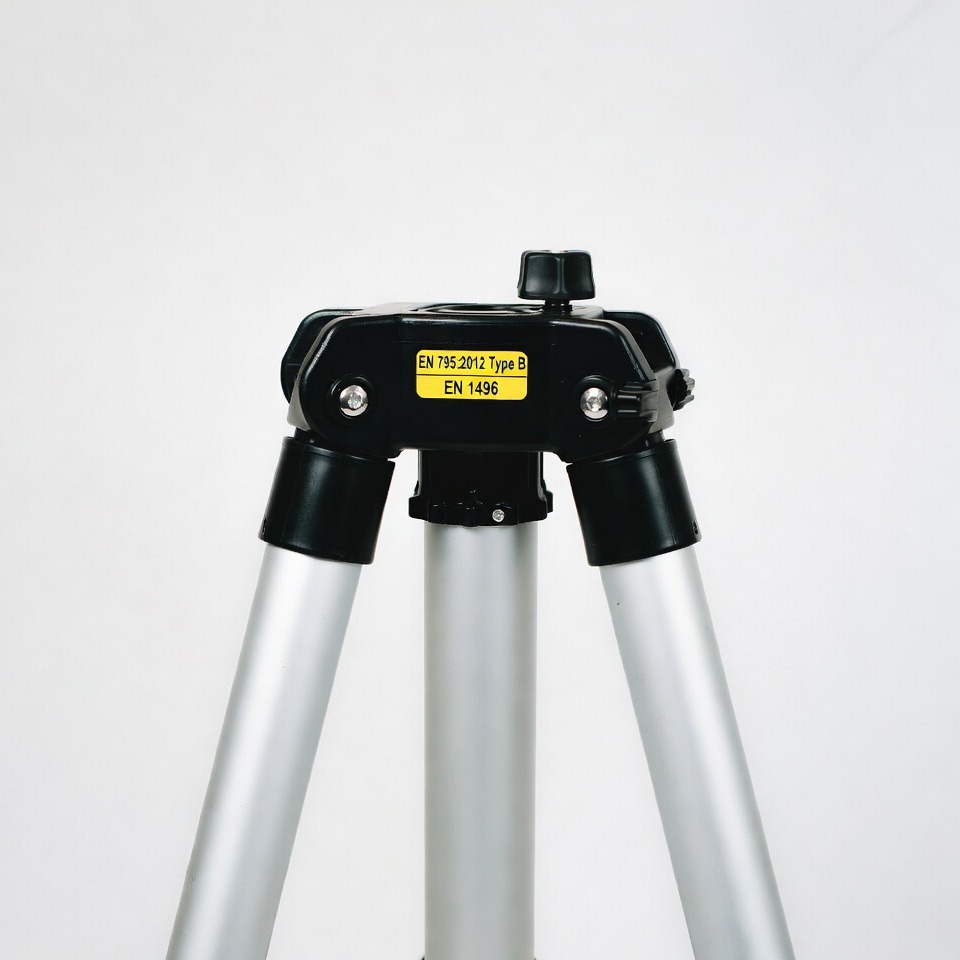

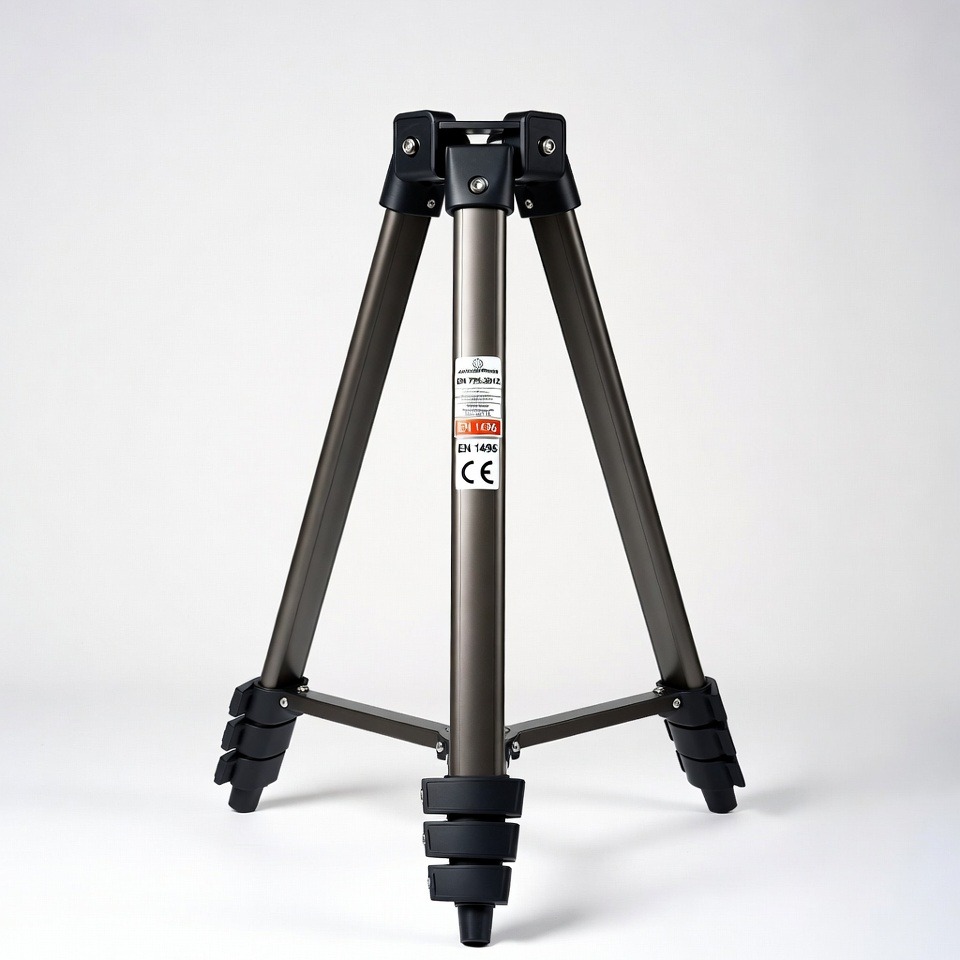

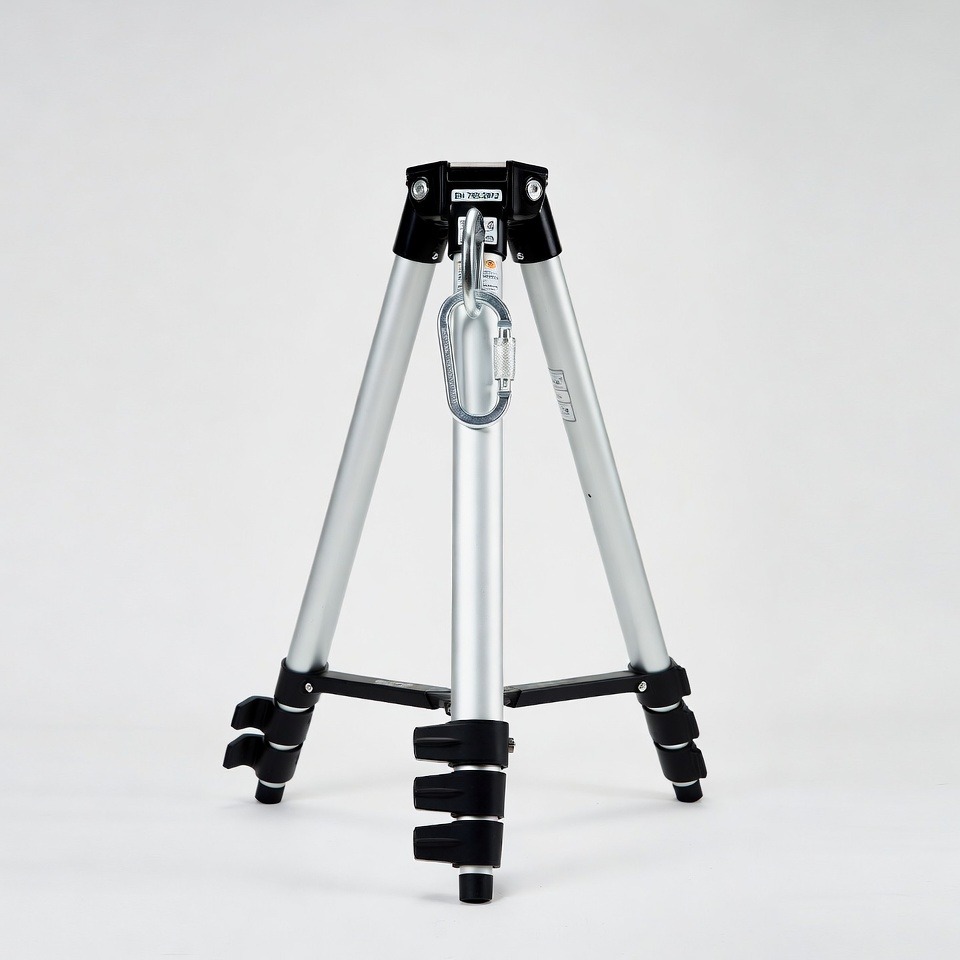

Our EN 795:2012 Type B certified Confined Space Rescue Tripod features a cast aluminium alloy head with telescoping aluminium legs — adjustable from 1.45m to 2.15m height and 0.80m to 1.50m wheelbase — with 500 kg head load capacity and integrated pulley system, engineered for confined space entry, personnel suspension, and emergency rescue operations across industrial, oil & gas, and facilities management environments throughout the UAE, GCC, Middle East, and Africa.

Key Features:

• 500 kg Head Load Capacity — Cast aluminium alloy tripod head rated for 500 kg vertical load for combined personnel and rescue lifting operations
• Telescoping Aluminium Legs — 1.45m to 2.15m — Pin-lock adjustable legs with anti-spread safety straps accommodating varying confined space entry point dimensions
• Dual Integrated Pulley System — Twin head-mounted pulleys for cable guidance when used with EN 1496 certified winch and SRL systems
• Two Auxiliary Eyebolt Anchor Points — Secondary attachment eyes on head providing additional connection points for rescue lanyards and positioning equipment
• Rubber-Soled Steel Feet — Non-slip rubber pads on steel support shoes maintaining positional stability on uneven and slippery surfaces
• EN 1496 Winch Compatible — Head configuration supports direct integration with certified rescue winches for personnel raising and lowering operations
